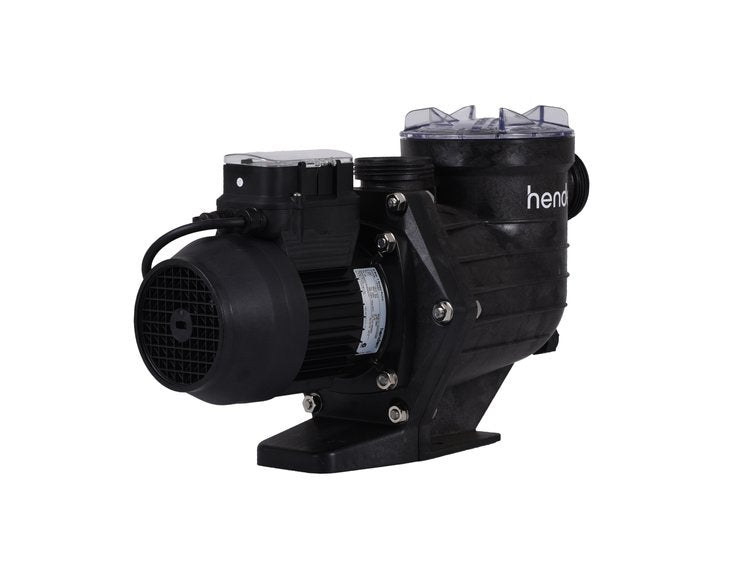

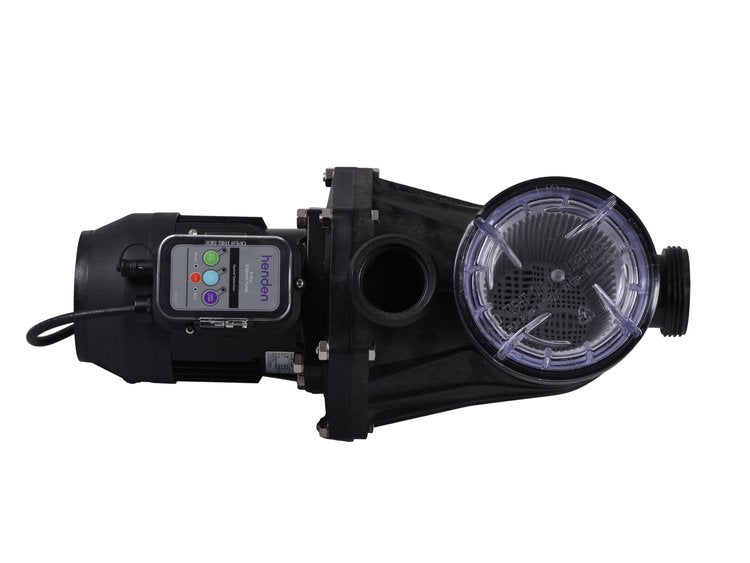

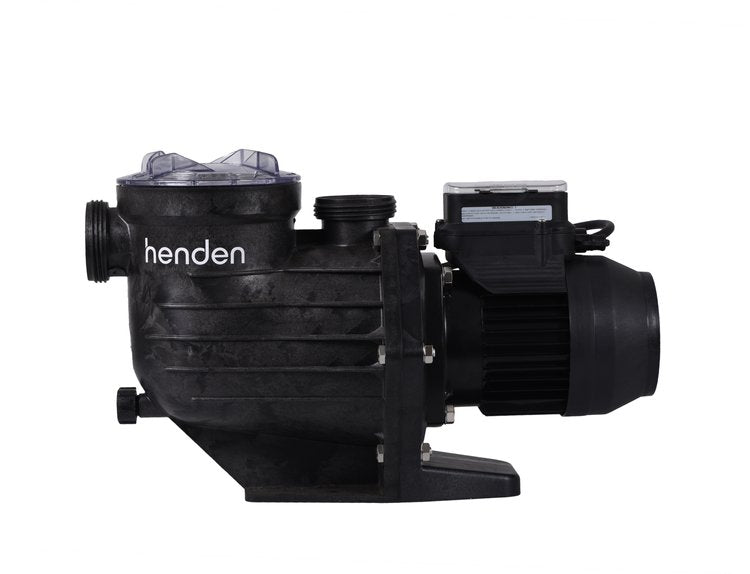

Henden 3 Speed Pump

Saves up to 70% of electricity compared to a single speed pump. Specifically designed to circulate swimming pool water for filtration, heating and sanitising applications. Suitable for pools up to 90,000 litres.

Features

• 3 speed variable control with fully programmable speed options for maximum performance and efficiency

• Quiet at only 60.5db, allowing you to run your pump at any time of day or night

• Advanced technology brushless DC motor for longer pump life

• 40/50mm ABS quick coupling barrel unions for easy connection and installation



General Information

• Model Number: H3SP1HP



Technical Information

• Flow Rate Range: 300lpm @ 8 meters @2850rpm

• Revolutions per Minute (RPM):

  • Eco Flow Speed - 1400 RPM

  • Mid Flow Speed - 2400 RPM

  • High Flow Speed - 2850 RPM

• Supply Frequency: 50 Hz



Temperature Information

• Maximum Ambient Temperature: 55 Deg C

• Maximum Water Temperature: 50 Deg C



Power Information

• Motor Input Power:

  • Eco Flow - 168 Watts / 0.23 hp

  • Mid Flow - 679 Watts / 0.91 hp

  • Hi Flow - 1125 Watts / 1.51 hp

• Motor Output Power:

  • Eco Flow - 127 Watts / 0.17 hp

  • Mid Flow - 521 Watts / 0.70 hp

  • Hi Flow - 853 Watts / 1.14 hp

• Run Current: 6.3 Amps

• Voltage: 220-240 Volts



Warranty Information

• 4 Year Quality Guarantee
