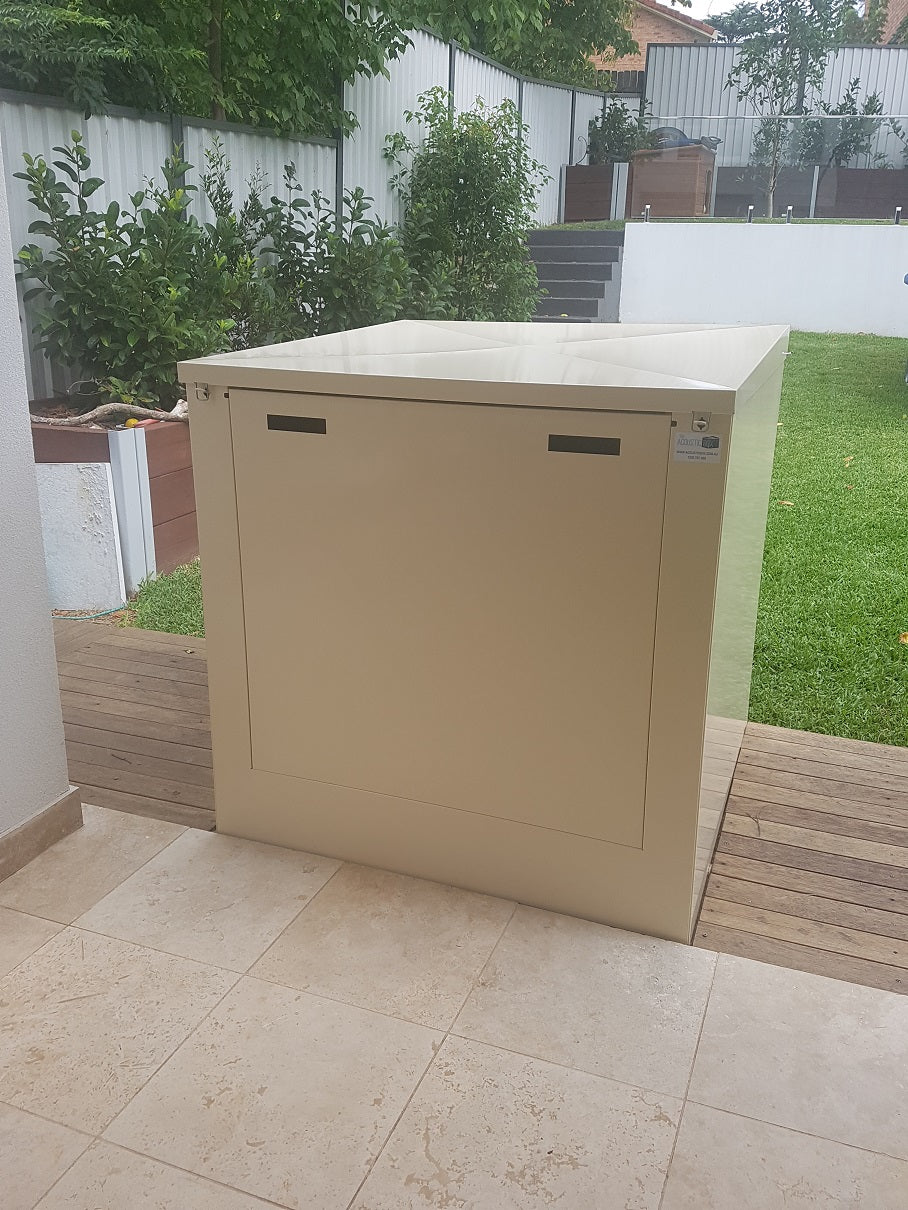

Acoustic Box 1100 mm W x 1100 mm D x 1145 mm

The slim models cater for more confined spaces whilst the backless models cater for situations when you have less than 50mm from the equipment to the wall / fence.

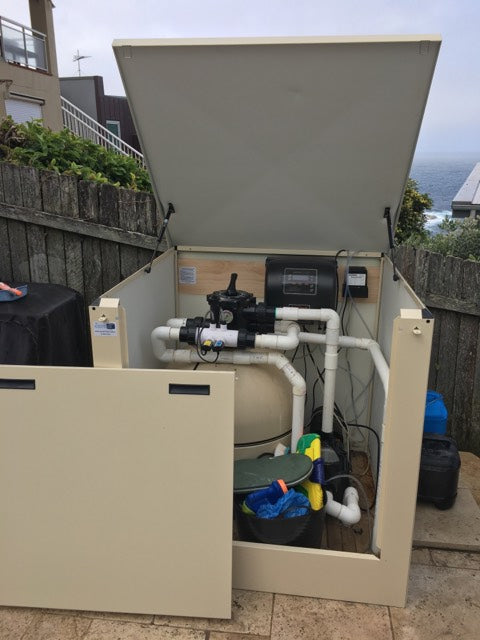

The smaller models (< 1100mm in width) will easily fit a filter (cartridge or sand), a pump, a chlorinator, and the power points. The larger models (> 1100mm in width) will fit a filter (sand or cartridge), multiple pumps, spa blowers, chlorinators and more.

Single units have 1 access point from the front (fully removable door) and 1 from the top (lid opens by approx. 1 metre). Double (and larger units) have 2+ removable front doors and 2+ top lids.

Reduces noise by 80%! – Assembles in as little as 15 minutes with absolutely NO NUTS / BOLTS or any TOOLS. Galvanized & Powder Coated – Rust Proof. Protects your Pool Pump / Filter with engineered ventilation gaps, easy lift out access from front and top.



Measurements

The 111111 model measurements (in MM):

External: 1100(W) X 1100(D) X 1145(H)

Internal: 1050(W) X 1050(D) X1100(H)

Notes with regards to measurements:

1. The external measurements are actually the same as the internal measurements throughout the box with the exception of the bottom and top of the box - where the metal bends to allow for the acoustic foaming to be housed.

2. All boxes also come in 'Backless configuration' - Pls allow an additional 50mm in depth for Backless models

3. It is advisable to allow for an additional 10-20mm on all asides of your Concrete slab (if laying the box on a slab)

4. The lid requires 45mm of clearance at the back to fully open. So pls allow this (or more) if placing the box against a wall or other hard surfaces.
